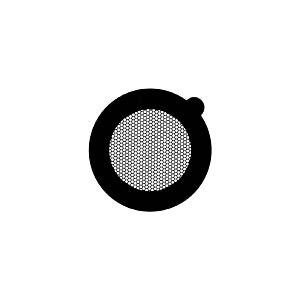

Thin Bar Grids / grilles 300 Mesh ( Cu, Ni) – Hexagonal Mesh – Gilder

1,00 €

UGS : T300H Catégories : , Marque :

Description

A reliable support specimen grid source. Features: well-defined grid bars, maximum open area, and a matte/shiny 3.05mm diameter, 0.7 mil thickness Copper (Cu), Nickel (Ni), Gold (Au), Copper/Palladium (Cu/Pd=CP) side. Each grid is individually inspected. Newly introduced are copper grids with palladium plating. This plating offers better grid strength and avoids tarnishing. Also new are Copper-Rhodium (Cu-Rh) grids in mesh sizes 200 and 300._x000D_ _x000D_  _x000D_ _x000D_ 3.05 diameter, 0.8 mil thickness_x000D_ Material: Copper(Cu), Nickel(Ni)_x000D_ Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area._x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
MeshCat#PackedPitch (µm)Hole (µm)Bar (µm)
200DT200H-Cu100/vial12511312
DT200H-Ni100/vial12511312
300DT300H-Cu100/vial837310
DT300H-Ni100/vial837310
400DT400H-Cu100/vial62548
DT400H-Ni100/vial62548
600DT600H-Cu100/vial37298
DT600H-Ni100/vial37298
_x000D_ N’hésitez pas à nous contacter si vous souhaitez des informations supplémentaires ou un autre produit._x000D_ _x000D_

Informations complémentaires

Matériau

Cu, Ni
Type de grille

Fine Hex/Ap
